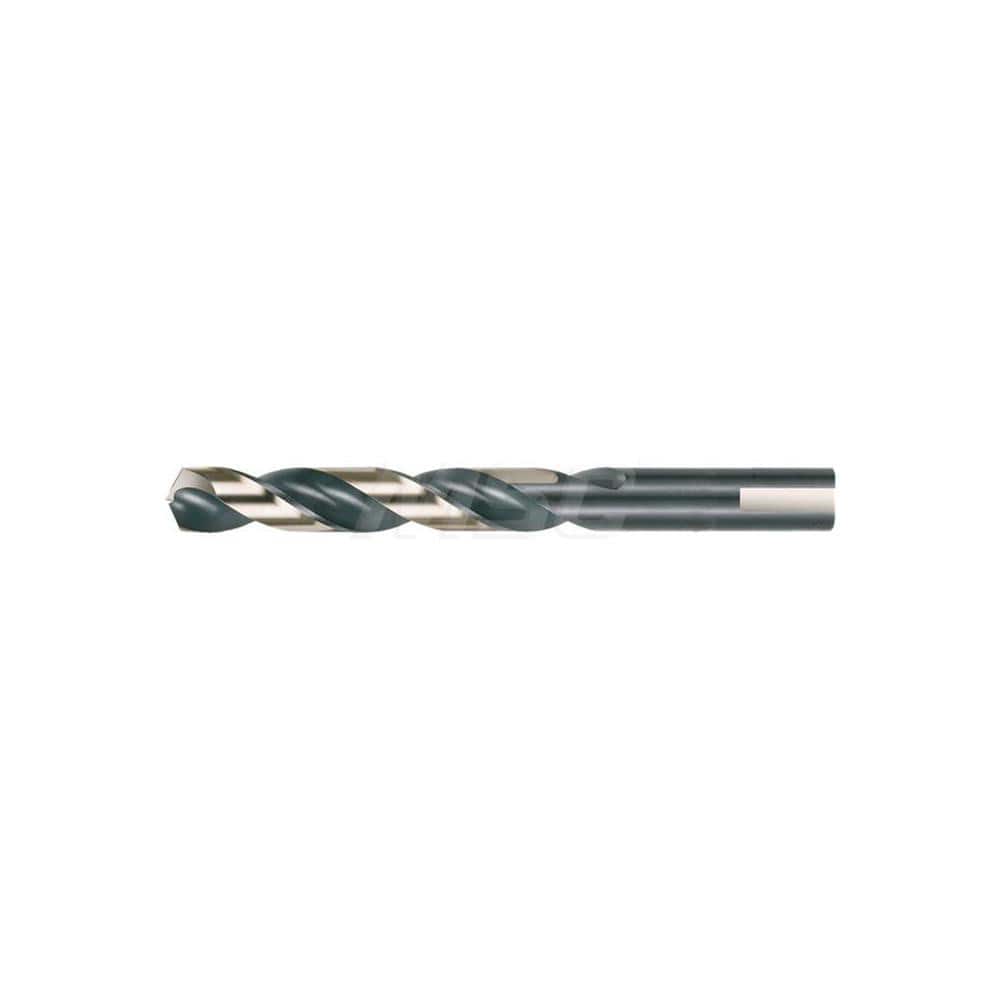

Mechanics Drill Bit: 1/2″ Dia, 135 ™, High Speed Steel, Flat Shank, Split Point Black Finish, 5 ″ OAL, RH Cut, Series 1875R
Item #: 59074369
Brand: Cleveland
Model #: C23859
Product Specifications
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Point Angle | 135 |
| Tool Material | High Speed Steel |
| Shank Type | Flat |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Series | 1875R |
| Drill Length Type | Mechanics |
| Flute Type | Spiral |
| Tool Performance | General Purpose |
| Number Of Pieces | 1 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Standards | ASME B94.11M |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Decimal Inch) | 1/2 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Length (Decimal Inch) | 3.3800 |
| Coating/Finish | Black |
