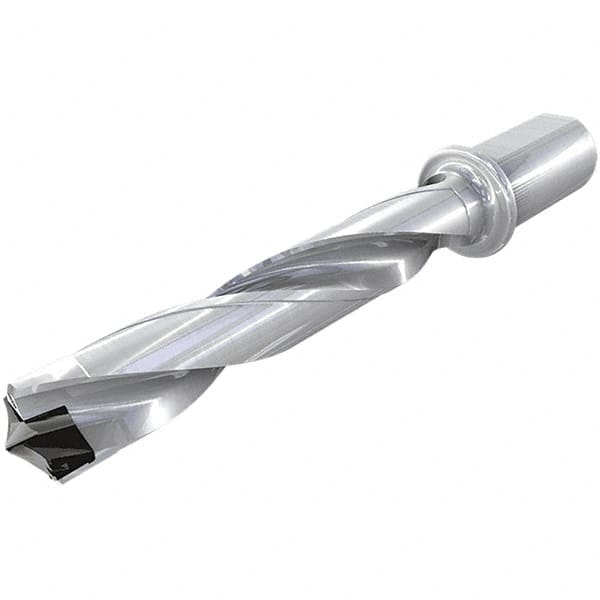

Iscar - 1.457 to 1.492" Diam, 3xD, 4.37" Max Drill Depth, 1-1/4" Shank Diam, 9.08" OAL, Replaceable Tip Drill - HFP-IQ Insert, 37 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 59091744
Brand: Iscar
Model #: 3203400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.4570 |
| Maximum Drill Diameter (Decimal Inch) | 1.4920 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.3700 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 37 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.3170 |
| Flute Length (Decimal Inch) | 1.4920 |
| Body Length (Decimal Inch) | 6.4000 |
| Overall Length (Decimal Inch) | 9.0800 |
| Shank Length (Decimal Inch) | 2.6800 |
