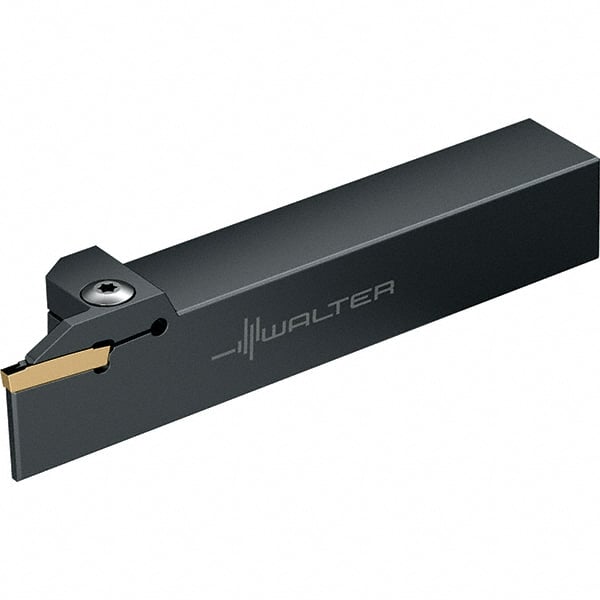

Walter - G1011, External, Left Hand, 21mm Max Depth of Cut, 2mm Min Groove Width, Indexable Grooving Tool Holder - GX24-1E2/F2.. Insert Compatibility, 20mm Shank Height, 0.787" Shank Width, 150mm OAL, Through Coolant
Item #: 59236752
Brand: Walter
Model #: 6530873
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut | 0.8270 |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Maximum Depth of Cut (mm) | 21.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9060 |
| Toolholder Style | G1011 |
| Insert Compatibility | GX24-1E2/F2.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7870 |
| Shank Width/Diameter (Inch) | 0.7870 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Insert Holding Method | Self Grip |
| Number of Inserts Used on Toolholder | 1 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5750 |
| Shank Length (mm) | 110.00 |
| Shank Length (Inch) | 4.3310 |
| Shank Length (Decimal Inch) | 4.3310 |
| Toolholder Material | Steel |
