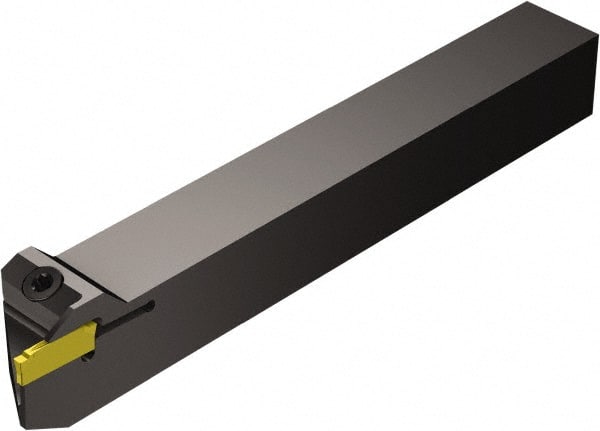

Sandvik Coromant - 17.02mm Max Depth, 1.85mm to 2.39mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 59237636
Brand: Sandvik Coromant
Model #: 5732612
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.02 |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Minimum Groove Width (Decimal Inch) | 0.0728 |
| Minimum Groove Width (mm) | 1.85 |
| Maximum Groove Width (mm) | 2.39 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Series | CoroCut? 1-2 |
| Toolholder Style | LF123..B-S |
| Insert Compatibility | N123E2-0200-CM |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (mm) | 15.88 |
| Head Height (Decimal Inch) | 0.6250 |
| Head Length (mm) | 15.88 |
| Head Length (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 3.8733 |
| Shank Length (mm) | 98.38 |
| Manufacturers Catalog Number | LF123E067-10B-S |
