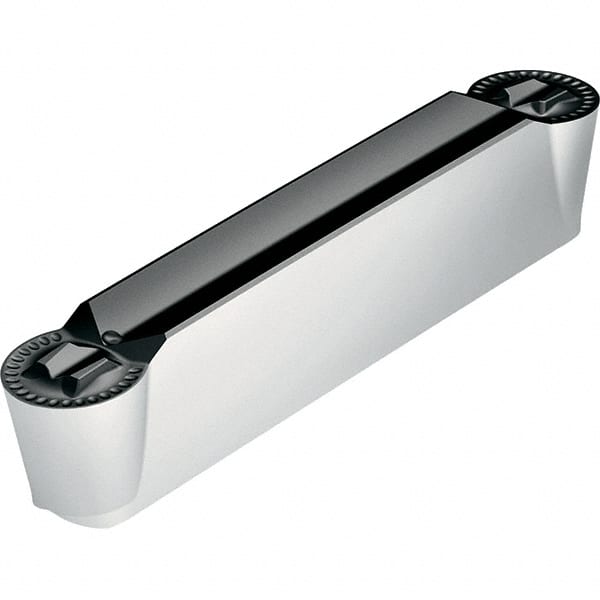

Walter - 8GX30 RD4 Grade WKP23S, 8mm Cutting Width Carbide Grooving Insert - 4.5mm Max Depth of Cut, Neutral, 4mm Corner Radius, Al2O3/TiN Finish
Item #: 59300152
Brand: Walter
Model #: 6529729
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX30 |
| Insert Size | 8 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Manufacturer's Grade | WKP23S |
| Coating | Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.18 |
| Cutting Height (Decimal Inch) | 0.2040 |
| Lead Angle | 90 |
| Chipbreaker | RD4 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Coating Process | CVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | GX30 |
| Rake | Positive |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
