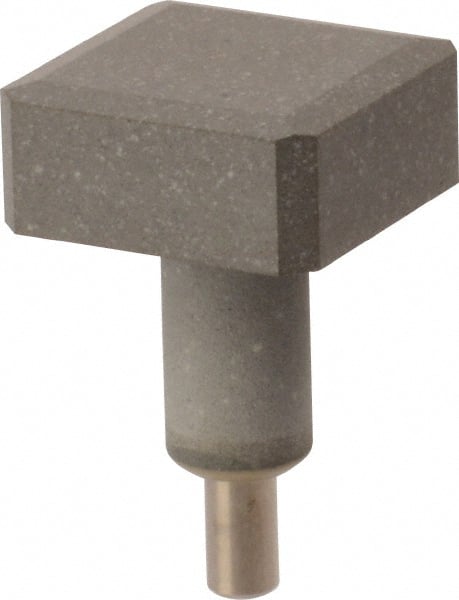

Renishaw - 3/4 Inch Ball Diameter, Stainless Steel Stem, Ceramic Point Disc Tip CMM Stylus - 0.1547 Inch Stem Diameter, 0.8661 Inch Overall Length
Item #: 59327288
Brand: Renishaw
Model #: A-2008-0384
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Disc type stylus' are used for probing undercuts and grooves. They are commony used for probing X and Y axis.
| Product Specifications | |
|---|---|
| Stylus or Probe | Stylus |
| Stylus Type | Disc |
| Point Material | Ceramic |
| Ball Diameter (mm) | 19.00 |
| Ball Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Stem Material | Stainless Steel |
| Stem Diameter (mm) | 3.93 |
| Stem Diameter (Decimal Inch) | 0.1547 |
