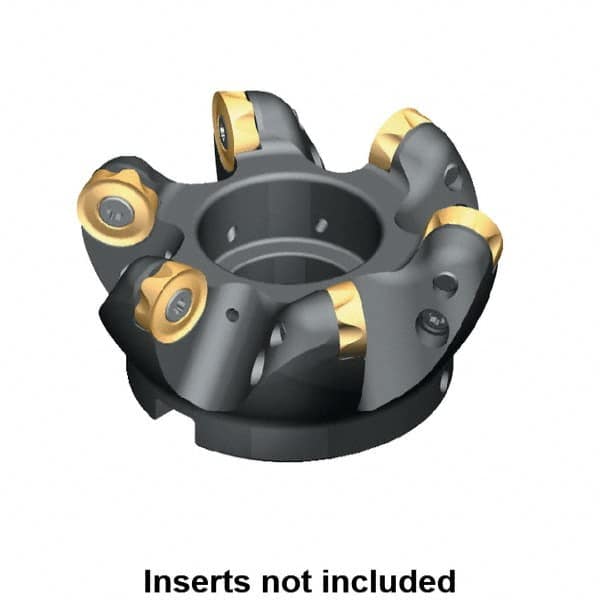

Kennametal - 4" Cut Diam, 9.53mm Max Depth, 1-1/4" Arbor Hole, 5 Inserts, RCGT 64... Insert Style, Indexable Copy Face Mill - BMD400 Cutter Style, 18,000 Max RPM, 2 High, Series KSRM
Item #: 59368480
Brand: Kennametal
Model #: 2610672
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | KSRM |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RCGT 64... |
| Cutter Style | BMD400 |
| Maximum RPM | 18000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.8750 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCGT 64ELF |
