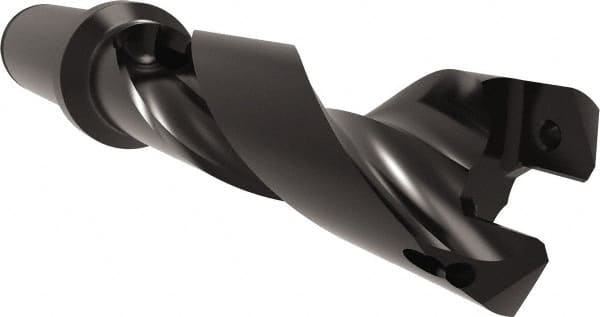

Allied Machine and Engineering - Series 24, 24 to 26mm Diam, 1" Diam Straight Shank with Flange, Helical Flute Spade Drill - 3-5/64" Max Depth, 4-31/64" Body Length, 6-49/64" OAL, Standard Length, Through Coolant
Item #: 59381467
Brand: Allied Machine and Engineering
Model #: 60324H-100C
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 24 |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0235 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 6-49/64 |
| Overall Length (Decimal Inch) | 6.7656 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Inch) | 3-5/64 |
| Maximum Drill Depth (Decimal Inch) | 3.0781 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 4-31/64 |
| Body Length (Decimal Inch) | 4.4844 |
| Shank Length (Inch) | 2-9/32 |
| Shank Length (Decimal Inch) | 2.2813 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
