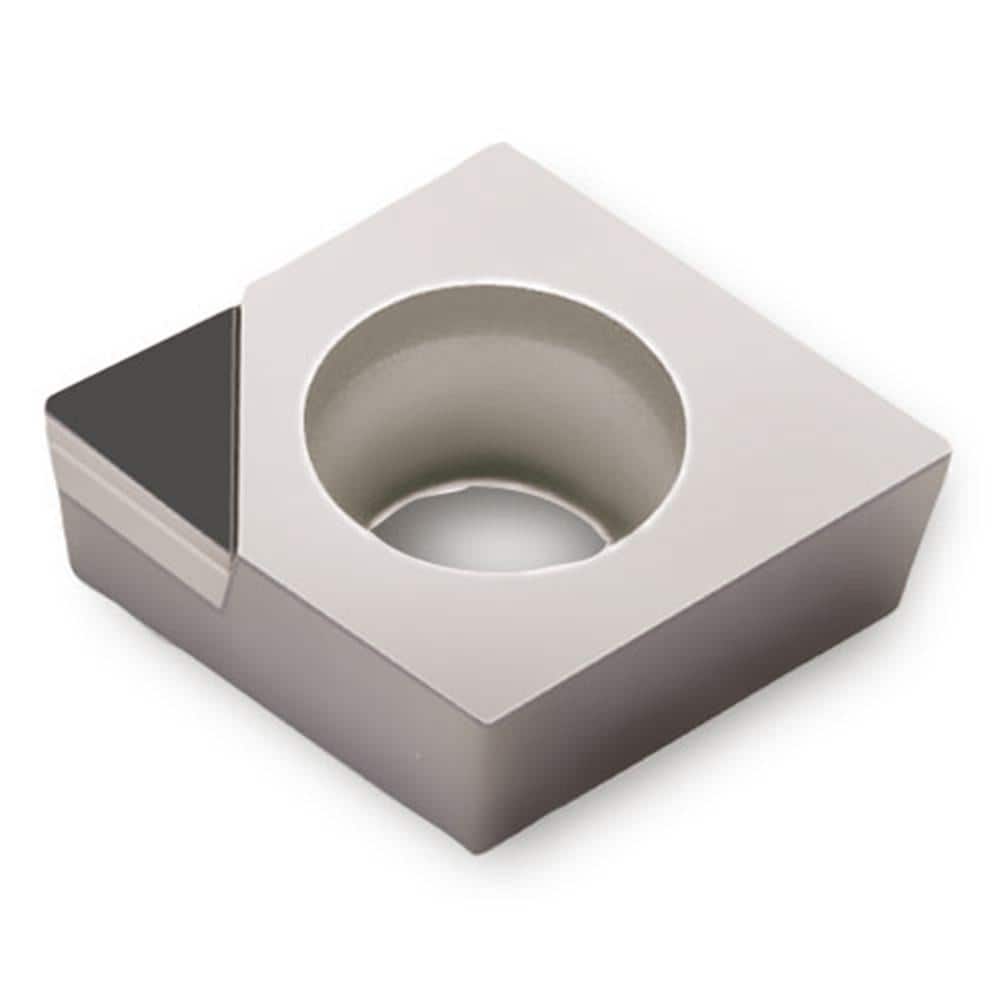

CCGW060202LN7 KP300 Polycrystalline Diamond (PCD) Turning Insert 0.122″ Long, 1/4″ Inscribed Circle, 0.008″ Corner Radius, 3/32″ Thick, 80° Diamond
Item #: 59395434
Brand: Ingersoll Cutting Tools
Model #: 5400940
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 21.50.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KP300 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1220 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | CCGW21.50.5LN7KP300 |
| Iso Code | CCGW060202LN-7 KP300 |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
