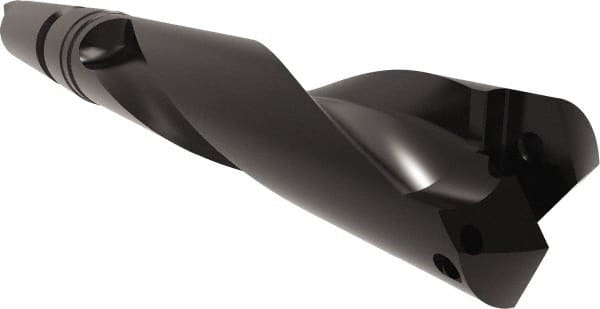

Allied Machine and Engineering - Series 2.5, 1-3/16 to 1-3/8" Diam, 4MT Taper Shank, Helical Flute Spade Drill - 5-3/8" Max Depth, 6-1/2" Body Length, 11-3/8" OAL, Standard Length, Through Coolant
Item #: 59424275
Brand: Allied Machine and Engineering
Model #: 24025H-004IS112
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 2.5 |
| Minimum Drill Diameter (Inch) | 1-3/16 |
| Minimum Drill Diameter (Decimal Inch) | 1.1875 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3750 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 11-3/8 |
| Overall Length (mm) | 288.93 |
| Overall Length (Decimal Inch) | 11.3750 |
| Maximum Drill Depth (mm) | 136.53 |
| Maximum Drill Depth (Inch) | 5-3/8 |
| Maximum Drill Depth (Decimal Inch) | 5.3750 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 165.10 |
| Flute Length (Inch) | 6-1/2 |
| Flute Length (Decimal Inch) | 6.5000 |
| Body Length (Inch) | 6-1/2 |
| Body Length (Decimal Inch) | 6.5000 |
| Body Length (mm) | 165.10 |
| Through Coolant | Yes |
