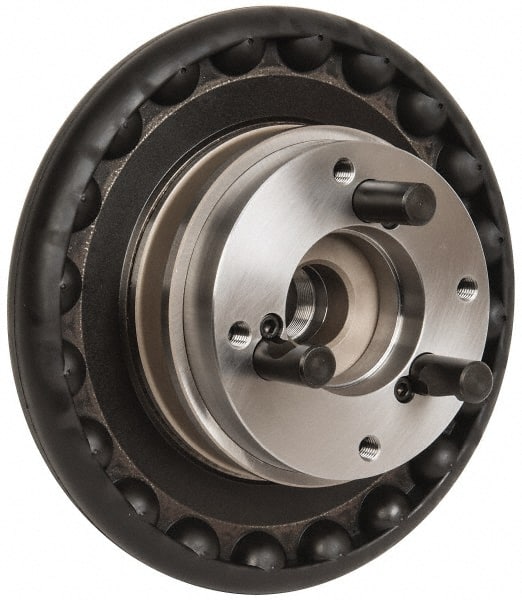

Atlas Workholding - 1-1/16 Inch Max Collet Capacity, 5C Collet Chuck - 5-3/8 Inch Overall Length, 0.0005 Inch TIR, 4.25 Inch Projection
Item #: 59450080
Brand: Atlas Workholding
Model #: PB23-D4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | 5C |
| Spindle Size | D1-4 |
| Actuator Type | Handwheel |
| Maximum Collet Capacity (Inch) | 1-1/16 |
| Projection (Decimal) | 4.2500 |
| Overall Length (Decimal) | 5.3750 |
| Through Coolant | Nonthrough Coolant |
| Nose Diameter (Decimal) | 2.2500 |
| TIR (Decimal Inch) | 0.0005 |
| PSC Code | 5136 |
