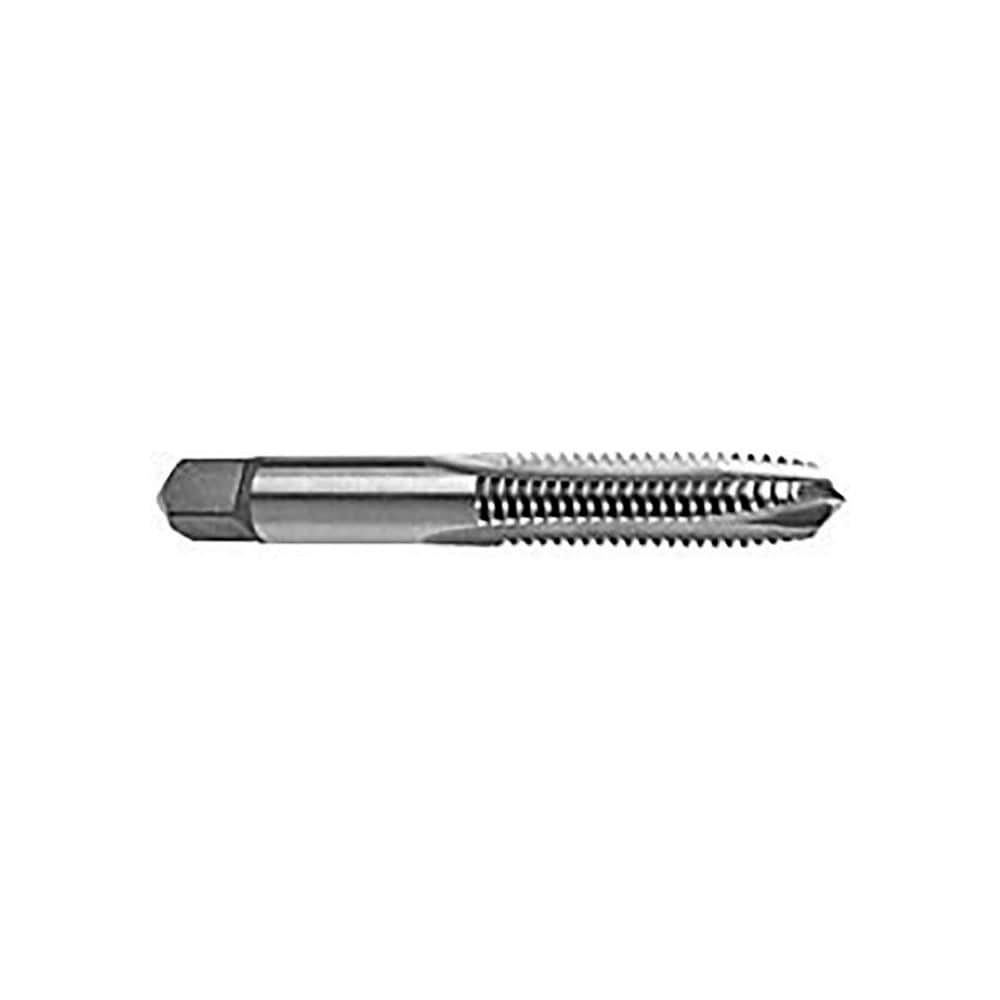

Spiral Point Tap: #10-32 UNF, 2 Flutes, Plug Chamfer, HSS, Bright/Uncoated Coated
Item #: 97084420
Brand: Reiff & Nestor
Model #: 15832
Product Specifications
| Thread Size (Inch) | #10-32 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 2 |
| Material Application | General Purpose |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 32 |
| Overall Length (Inch) | 2-3/8 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Overall Length (Decimal Inch) | 2.375 |
| Thread Length (Decimal Inch) | 0.8750 |
| Thread Length (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Application | Through-Hole Threading |
| Measurement Type | Fractional Inch |
| Series | 106C |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
