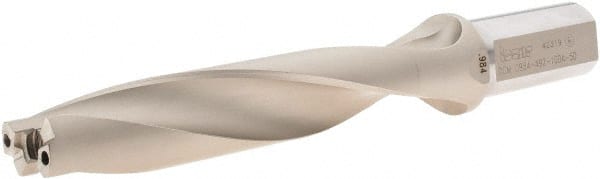

Iscar - 0.984 to 1.02" Diam, 5xD, 4.92" Max Depth, 1" Shank Diam, 8.46" OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 59602854
Brand: Iscar
Model #: 3200693
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (Decimal Inch) | 1.0200 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.9200 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 6.2600 |
| Overall Length (Decimal Inch) | 8.4600 |
| Shank Length (Decimal Inch) | 2.2000 |
