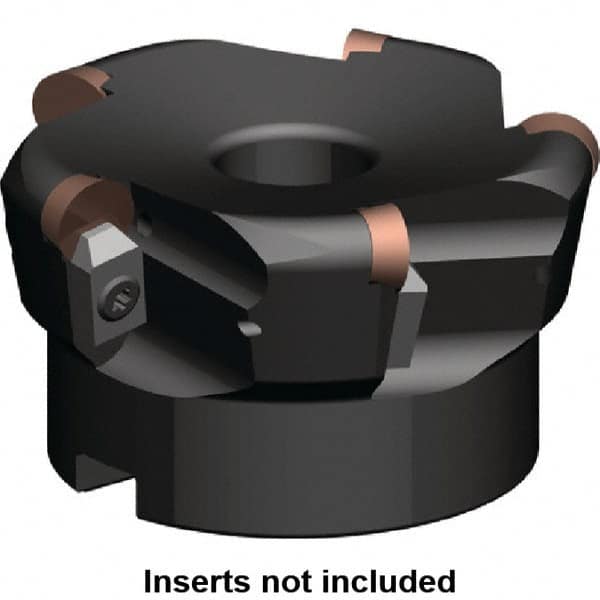

Kennametal - 50.8mm Cut Diam, 0.249" Max Depth, 3/4" Arbor Hole, 4 Inserts, RP.. 43... Insert Style, Indexable Copy Face Mill - KSSR Cutter Style, 16,000 Max RPM, 2 High, Series KSSR-RP
Item #: 59682757
Brand: Kennametal
Model #: 1942586
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2490 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | KSSR-RP |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RP.. 43... |
| Cutter Style | KSSR |
| Maximum RPM | 16000 |
| Insert Holding Method | Clamp |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Complete Insert Compatibility | RP.. 43... |
