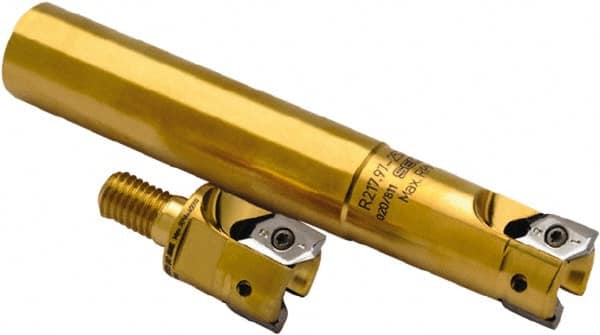

Seco - 1-1/2" Cutting Diam, Modular Connection Indexable Copy End Mill - 3 Inserts, XPKX 12 Insert, R217.97 Toolholder, Through Coolant
Item #: 59713685
Brand: Seco
Model #: 25592
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | XPKX 12 |
| Toolholder Style | R217.97 |
| Overall Length (Decimal Inch) | 1.5750 |
| Insert Diameter (Decimal Inch) | 0.3960 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Maximum RPM | 35000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Modular Connection Size | M16 |
