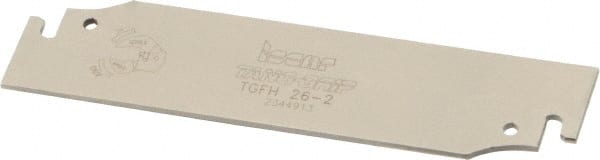

Iscar - 1.0236" Blade Height, 0.065" Blade Width, 4.3307" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Sumo-Grip, Tang-Grip Series
Item #: 59790873
Brand: Iscar
Model #: 2301860
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 1.65 |
| Blade Width (Decimal Inch) | 0.0650 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | TGFH |
| Insert Style | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
| Insert Width (mm) | 1.80 |
| Insert Width (Decimal Inch) | 0.0709 |
| Series | Sumo-Grip; Tang-Grip |
| Tool Block/Toolholder Style | SGTBR/L; SGTBU/SGTBN; UBHCR/L |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9685 |
| Cutting Height (mm) | 21.40 |
| Cutting Height (Decimal Inch) | 0.8425 |
| Minimum Insert Width (mm) | 1.80 |
| Minimum Insert Width (Decimal Inch) | 0.0709 |
| Maximum Insert Width (mm) | 2.40 |
| Maximum Insert Width (Decimal Inch) | 0.0945 |
| Complete Insert Compatibility | TAG L2J-15D; TAG L2J-6D; TAG L2JS-6D; TAG N2A; TAG N2LF; TAG N2MF; TAG N2UT; TAG R2J-6D; TAG R2JS-6D |
| Complete Tool Block/Toolholder Style Compatibility | SGTBL 25-6; SGTBR 25-6; SGTBU 16-5G; SGTBU 19-5G; SGTBU 25.4-5G; UBHCL 19-26; UBHCR 19-26 |
