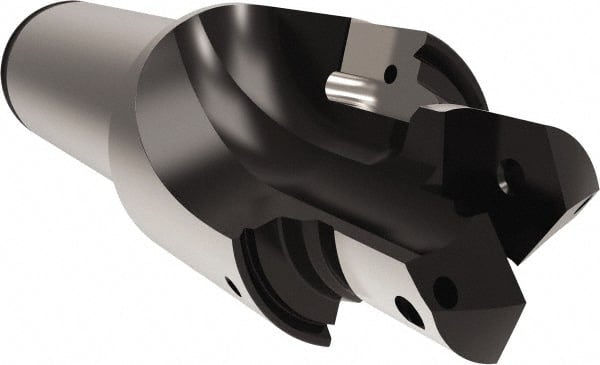

Allied Machine and Engineering - M22x1.50, 0.807" Pilot Diam, 1.339" Spotface Diam, 0.717" Pilot Length, Tube Dash 10, Indexable Porting Tool
Item #: 59839613
Brand: Allied Machine and Engineering
Model #: I6149-10R1-25FM
Product Specifications
| Port Standard Designation | ISO 6149-1:1993; SAE J2244-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | M22x1.50 |
| Tube Dash Number | 10 |
| Pilot Diameter (Decimal Inch) | 0.8070 |
| Spotface Diameter (Decimal Inch) | 1.3390 |
| Pilot Length (Decimal Inch) | 0.7170 |
| Shank Diameter (Inch) | 0.9840 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | I6149-04-C3H; I6149-04-C5A; I6149-04R-C3H; I6149-04R-C5A |
| Porting Diameter (Decimal Inch) | 0.9380 |
| Overall Length (Decimal Inch) | 4.2310 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1020 |
| Head Length (Decimal Inch) | 2.1400 |
| Shank Length (Decimal Inch) | 2.0910 |
| Spotface to Shoulder Length (Decimal Inch) | 1.2460 |
| Series | AccuPort 432 |
