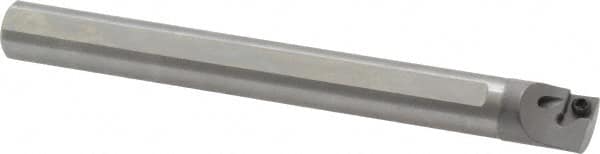

Kennametal - 0.545" Min Bore Diam, 5" OAL, 1/2" Shank Diam, QSMI Indexable Boring Bar - 2" Max Bore Depth, CPC. Insert, Screw Holding Method
Item #: 59871376
Brand: Kennametal
Model #: 1950455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | QSMI |
| Series | Q |
| Minimum Bore Diameter (Decimal Inch) | 0.5450 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | CPC. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Grooving; Threading |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2800 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0930 |
| Complete Insert Compatibility | CPCA 210.5 CG5; CPCA 210.5 CG6; CPCA 210.5 CM1; CPCA 211 CG5; CPCA 211 CG6; CPCA 211 CM1; CPCM 210.5 CG5; CPCM 210.5 CG6; CPCM 210.5 CM1; CPCM 211 CG5; CPCM 211 CG6; CPCM 211 CM1 |
| Toolholder Material | Steel |
