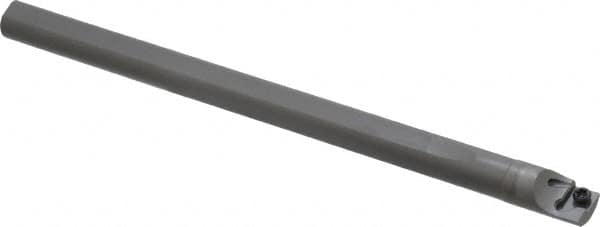

Kennametal - 0.421" Min Bore Diam, 6" OAL, 3/8" Shank Diam, QCMI Indexable Boring Bar - CPC. Insert, Screw Holding Method
Item #: 59871418
Brand: Kennametal
Model #: 1950459
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | QCMI |
| Series | Q |
| Minimum Bore Diameter (Decimal Inch) | 0.4210 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | CPC. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Grooving; Threading |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2180 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Complete Insert Compatibility | CPCA 210.5 CG5; CPCA 210.5 CG6; CPCA 210.5 CM1; CPCA 211 CG5; CPCA 211 CG6; CPCA 211 CM1; CPCM 210.5 CG5; CPCM 210.5 CG6; CPCM 210.5 CM1; CPCM 211 CG5; CPCM 211 CG6; CPCM 211 CM1 |
| Toolholder Material | Carbide (Shank), Steel (Head) |
