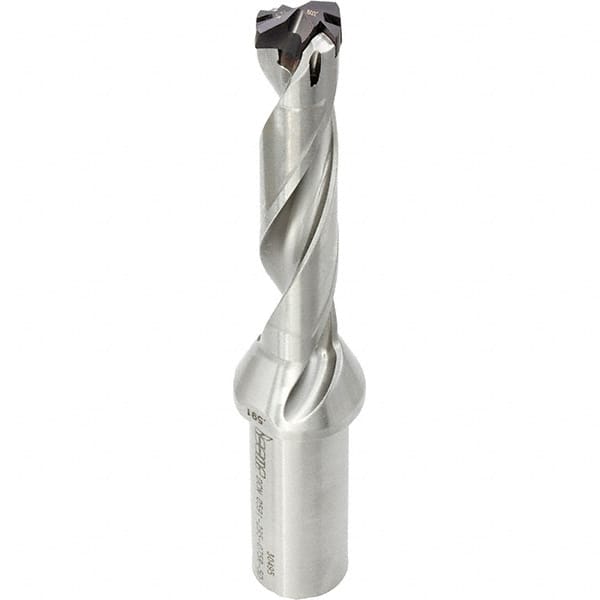

Iscar - 0.571" to 0.587" Diam, 8xD, 4.57" Max Depth, 0.63" Shank Diam, 7-1/4" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 14 Seat Size, 59949586 Toolholder, Series SumoCham
Item #: 59949586
Brand: Iscar
Model #: 3203213
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5710 |
| Maximum Drill Diameter (Decimal Inch) | 0.5870 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.5700 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 5.3600 |
| Overall Length (Decimal Inch) | 7.2500 |
| Shank Length (Decimal Inch) | 1.8900 |
