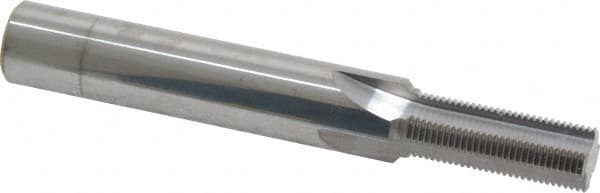

Scientific Cutting Tools - 1/2-28 Thread, 1/2" Shank Diam, Bright Coating, Solid Carbide Straight Flute Thread Mill - 4 Flutes, 3-1/2" OAL, 1/2" Min Noml Diameter
Item #: 60020781
Brand: Scientific Cutting Tools
Model #: TM 400-28
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Threads Per Inch | 28 |
| Thread Size (Inch) | 1/2-28 |
| Minimum Nominal Diameter (Inch) | 1/2 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.4000 |
| Finish/Coating | Bright |
| Length of Cut (Decimal Inch) | 1.0500 |
| Thread Standard | UNEF |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 3-1/2 |
| Material Grade | Submicron |
| Tolerance (Decimal Inch) | ±0.0005 |
| Staggered Tooth | No |
