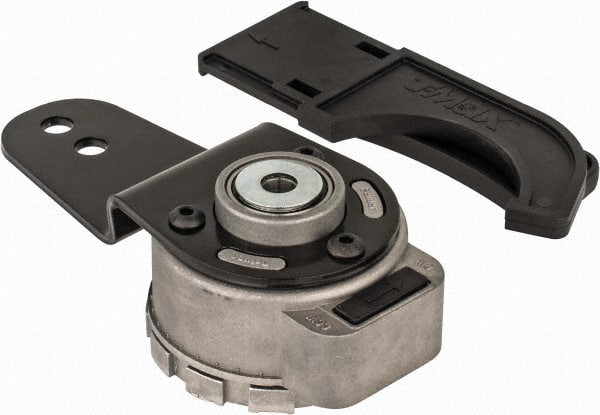

Fenner Drives - Rotary Tensioners Type.: Rotary Tensioner Material: Steel & Aluminum
Item #: 60028495
Brand: Fenner Drives
Model #: RT4101
Exact Tooling IR#: 04
Product Specifications
Rotary Tensioners; Type.: Rotary Tensioner ; Material: Steel & Aluminum ; Overall Length (Decimal Inch): 8.5800 ; Overall Width (Decimal Inch): 4.0000 ; Maximum Force: 85 (Pounds); Minimum Force: 0 (Pounds)
| Type. | Rotary Tensioner |
| Material | Steel & Aluminum |
| Overall Length (Decimal Inch) | 8.5800 |
| Overall Width (Decimal Inch) | 4.0000 |
| Maximum Force (Pounds) | 85 |
| Minimum Force (Pounds) | 0 |
| Distance Between Hole Centers (Decimal Inch) | 4-1/2 |
| Frame Thickness (Decimal Inch) | 1.19 |
| Neck Width (Decimal Inch) | 2.24 |
| Hole Thread Size | 0.51 |
| Bolt Thread Size | 0.51 |
| PSC Code | 5120 |
