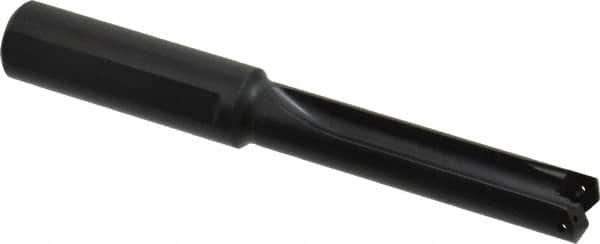

Allied Machine and Engineering - Series 0.5, 39/64 to 11/16" Diam, 3/4" Diam Straight Shank, Straight Flute Spade Drill - 2-1/2" Max Depth, 3-27/64" Body Length, 5-11/16" OAL, Standard Length, Through Coolant
Item #: 60095601
Brand: Allied Machine and Engineering
Model #: 24005S-075L
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 0.5 |
| Minimum Drill Diameter (Inch) | 39/64 |
| Maximum Drill Diameter (Inch) | 11/16 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 5-11/16 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 3-5/16 |
| Body Length (Inch) | 3-27/64 |
| Shank Length (Inch) | 2-3/8 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
