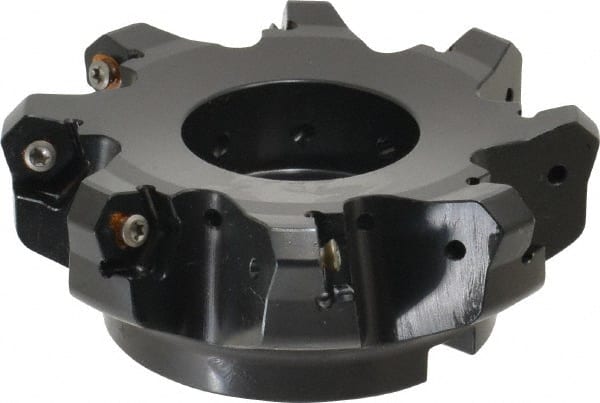

Kennametal - 4" Cut Diam, 1-1/4" Arbor Hole, 4.51mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, HNGJ 535-GD Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series KSHR
Item #: 60107968
Brand: Kennametal
Model #: 3326926
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HNGJ 535-GD |
| Series | KSHR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1780 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 2.7220 |
| Maximum Body Diameter (Decimal Inch) | 4.4320 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
| Complete Insert Compatibility | HNGJ 535ANENLD; HNGJ 535ANSNGD |
