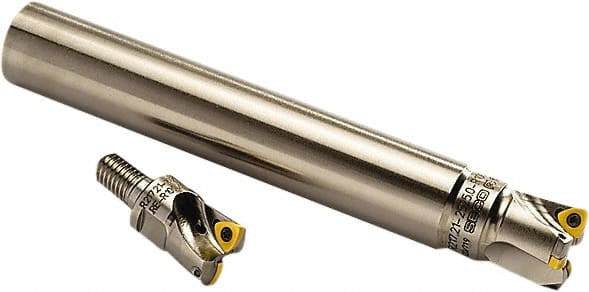

Seco - 1-1/4" Cut Diam, 0.08" Max Depth, M16 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, 218.19-160 Insert, R217.21 Toolholder, Through Coolant
Item #: 60115706
Brand: Seco
Model #: 29645
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 2 |
| Insert Style | 218.19-160 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Minimum Cutting Diameter (Decimal Inch) | 0.6000 |
| Maximum RPM | 19700 |
| Through Coolant | Through Coolant |
