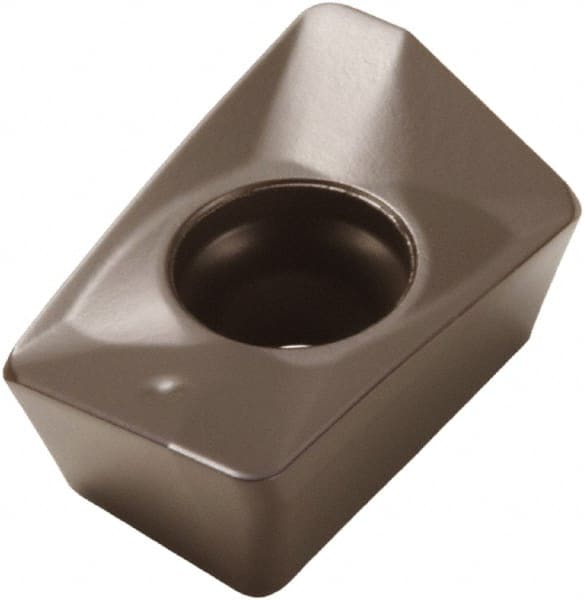

Seco - XOMX120404 MD13 Grade MP1500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.155" Thick, 0.016" Corner Radius
Item #: 60116571
Brand: Seco
Model #: 36008
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 120404 |
| Material | Carbide |
| Manufacturer's Grade | MP1500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.3220 |
| Length (Decimal Inch) | 0.4490 |
| Thickness (Decimal Inch) | 0.1550 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 14.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 80 |
| Shape | Parallelogram |
| Chipbreaker | MD13 |
| ISO Number | XOMX 120404TR-MD13 |
