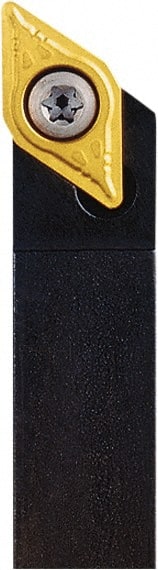

Seco - SDAC, Right Hand Cut, 90° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 100mm OAL, DC..11T3.. Insert Compatibility, Series Screw Lock
Item #: 60119245
Brand: Seco
Model #: 06888
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDAC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw Lock |
| Lead Angle | 90 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | DC..11T3.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.70 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6575 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Steel |
