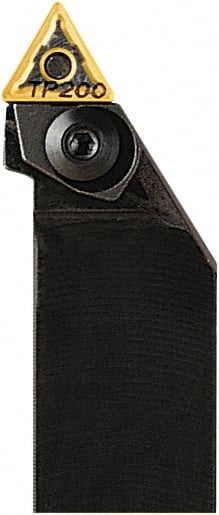

Seco - PTTN, Right Hand Cut, 60° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, TNM..1604.. Insert Compatibility, Series Pin & Wedge
Item #: 60119831
Brand: Seco
Model #: 92439
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PTTN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Pin & Wedge |
| Lead Angle | 60 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | TNM..1604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Wedge |
| Back of Bar to Cutting Edge (mm) | 17.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Steel |
