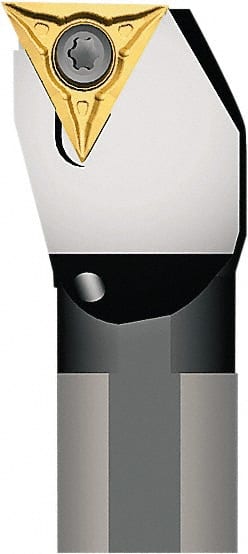

Seco - 16mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, A-STFC Indexable Boring Bar - 21mm Max Bore Depth, TC.. 1102.. Insert, Screw Holding Method
Item #: 60127131
Brand: Seco
Model #: 15243
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 21.00 |
| Maximum Bore Depth (Decimal Inch) | 0.8268 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TC.. 1102.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCGT 110201-F1; TCGT 110202F-AL; TCGT 110202L-UX; TCGT 110202R-UX; TCGT 110204F-AL; TCGT 110204L-UX; TCGT 110204R-UX; TCGT 110208F-AL; TCGW 110204E-L1-C; TCGW 110204S-01020-LF; TCGW 110204S-01525-L1-C; TCGW 110204S-02020-L1-C; TCGW 110208S-01020-LF |
| Toolholder Material | Steel |
