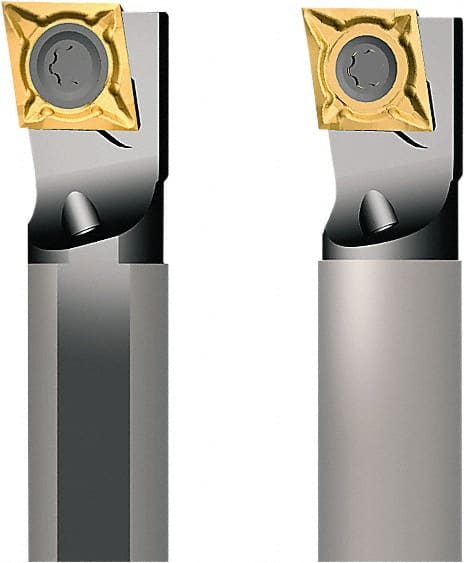

Seco - 22mm Min Bore Diam, 180mm OAL, 16mm Shank Diam, A-SCFC Indexable Boring Bar - 22mm Max Bore Depth, CC.. 09T3.. Insert, Screw Holding Method
Item #: 60127362
Brand: Seco
Model #: 15102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCFC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 22.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.8661 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 22.00 |
| Maximum Bore Depth (Decimal Inch) | 0.8661 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | CC.. 09T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCGT 09T301-F1; CCGT 09T302F-AL; CCGT 09T304-F1; CCGT 09T304-MF2; CCGT 09T304F-AL; CCGT 09T304L-UX; CCGT 09T304R-UX; CCGT 09T308F-AL; CCGW 09T; CCGW 09T304E-L1-B; CCGW 09T304S-01020-LF; CCGW 09T304S-01525-L1-B; CCGW 09T304S-L0-WZ; CCGW 09T304S25-02020-L1- |
| Toolholder Material | Steel |
