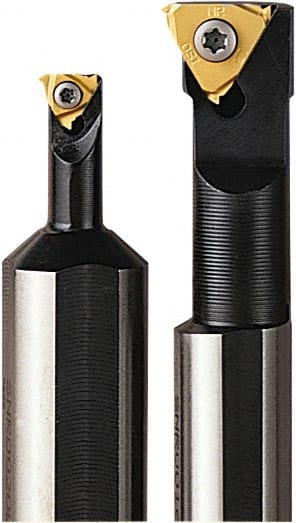

Seco - Internal Thread, Left Hand Cut, 16mm Shank Width x 14mm Shank Height Indexable Threading Toolholder - 150mm OAL, 16NL Insert Compatibility, SN Toolholder, Series Snap Tap
Item #: 60129921
Brand: Seco
Model #: 78359
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 14.00 |
| Shank Height (Decimal Inch) | 0.5512 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Compatibility | 16NL |
| Series | Snap Tap |
| Toolholder Style | SN |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 10.30 |
| Center to Cutting Edge (Decimal Inch) | 0.4055 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
