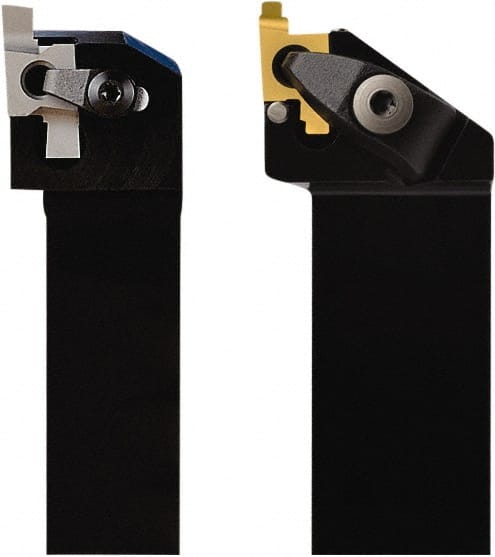

Seco - CE, External, Right Hand, 2.65mm Max Depth of Cut, 1.15 to 2.65mm Groove Width, Indexable Grooving Tool Holder - 10ER Insert Compatibility, 32mm Shank Height, 24.99mm Shank Width, 170mm OAL
Item #: 60131794
Brand: Seco
Model #: 00414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (mm) | 2.65 |
| Minimum Groove Width (Decimal Inch) | 0.0453 |
| Minimum Groove Width (mm) | 1.15 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6930 |
| Toolholder Style | CE |
| Insert Compatibility | 10ER |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2600 |
| Shank Width/Diameter (mm) | 24.99 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2600 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8660 |
| Complete Insert Compatibility | 10ER 0.50FD; 10ER 0.80FD; 10ER 1.00FD; 10ER 1.15FG; 10ER 1.35FG; 10ER 1.65FG; 10ER 1.9FG; 10ER 2.15FG; 10ER 2.65FG |
