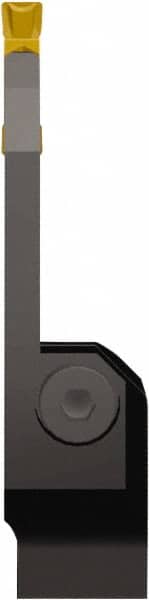

Seco - CFS, External, Left Hand, 0.95" Max Depth of Cut, 3mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1603.. Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 6" OAL
Item #: 60132412
Brand: Seco
Model #: 56999
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9500 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | CFS |
| Insert Compatibility | LC.. 1603.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.8100 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160300-0318-RP; LCGF 160301-0300-FG; LCGF 160302-0300-GG; LCGF 160302-0300-GS; LCGF 1603M0-0300-RP; LCGN 1603-A55; LCGN 1603-G55; LCGN 160300-0115-FG; LCGN 160300-0135-FG; LCGN 160301-0165-FG; LCGN 160301-0190-FG; LCGN 160301-0215-FG; LCGN 160302-030 |
