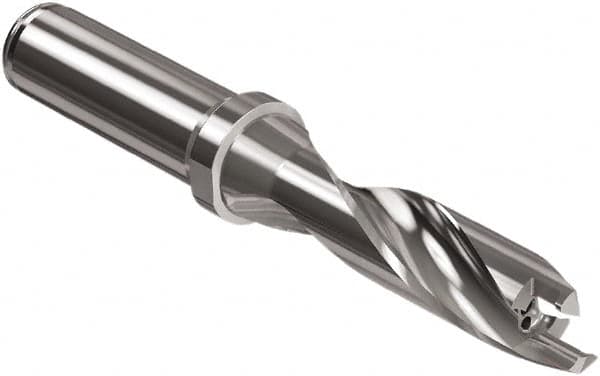

Seco - 12.5 to 12.99mm Diam, 3xD, 39mm Max Depth, 16mm Shank Diam, 47.5mm Flute, 108mm OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 60138047
Brand: Seco
Model #: 39859
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5354 |
| Maximum Drill Depth (mm) | 39.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 47.50 |
| Flute Length (Decimal Inch) | 1.8701 |
| Body Length (mm) | 60.00 |
| Body Length (Decimal Inch) | 2.3622 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 108.00 |
| Overall Length (Decimal Inch) | 4.2520 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
