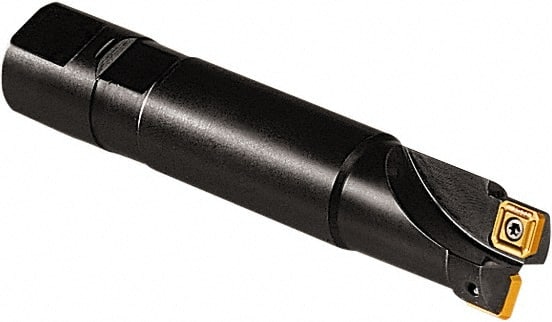

Seco - 42mm Cut Diam, 11mm Max Depth of Cut, 32mm Shank Diam, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 60141546
Brand: Seco
Model #: 18693
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 42.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Minimum Cutting Diameter (mm) | 42.00 |
| Minimum Cutting Diameter (Decimal Inch) | 1.6535 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 3.5433 |
| Shank Length (mm) | 90.00 |
| Maximum RPM | 12000 |
