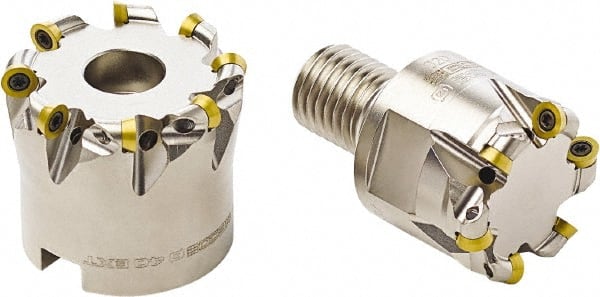

Seco - 40mm Cut Diam, 3mm Max Depth, 16mm Arbor Hole, 8 Inserts, RDH... 06T1 Insert Style, Indexable Copy Face Mill - 17,600 Max RPM, 35mm High, Through Coolant
Item #: 60142254
Brand: Seco
Model #: 05066
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 35.00 |
| Overall Height (Decimal Inch) | 1.3780 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RDH... 06T1 |
| Through Coolant | Yes |
| Maximum RPM | 17600 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.3780 |
| Insert Inscribed Circle (mm) | 6.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.2362 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RDHT 06T1M0-E02; RDHW 06T1M0-MD02 |
