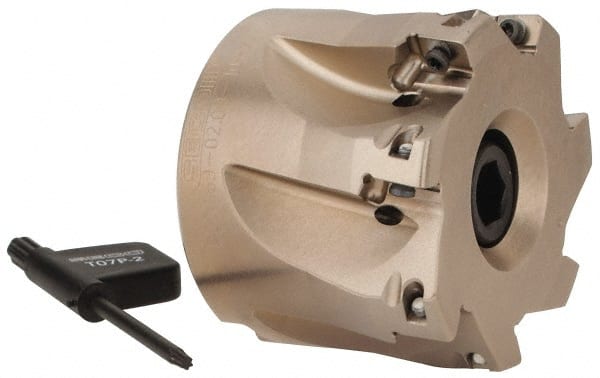

Seco - 7 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.354" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 1.575" High, XO.X 10T3.. Insert Compatibility, Through Coolant, Series Turbo 10
Item #: 60143047
Brand: Seco
Model #: 68471
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | XO.X 10T3.. |
| Series | Turbo 10 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R220.69 |
| Number of Flutes | 7 |
| Cutting Rake Angle | -4 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.3200 |
| Maximum RPM | 16600 |
| Pitch | Fine |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| Counterbore Diameter (Decimal Inch) | 0.3200 |
| Complete Insert Compatibility | XOMX 10; XOEX 13 |
| Toolholder Material | Steel |
