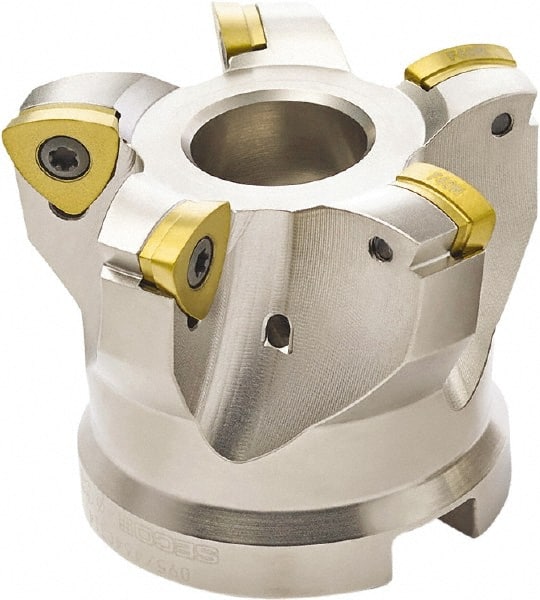

Seco - 5 Inserts, 2.5984" Cutter Diam, 0.0709" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.4882" Keyway Width, 1.9685" High, 218.19-160.. Inserts
Item #: 60143229
Brand: Seco
Model #: 05097
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5984 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9685 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | 218.19-160.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11200 |
| Maximum Body Diameter (Decimal Inch) | 2.0669 |
| Through Coolant | Yes |
| Complete Insert Compatibility | 218.19-160-04-E07 |
| Keyway Width (Decimal Inch) | 0.4882 |
