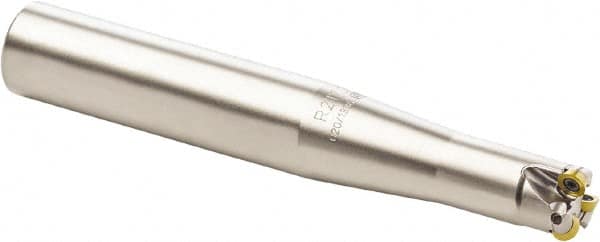

Seco - 12mm Cutting Diam, 12mm Shank Diam, 3mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RDH.. 06T1 Insert, R217.29 Toolholder, Carbide
Item #: 60143369
Brand: Seco
Model #: 05050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDH.. 06T1 |
| Toolholder Style | R217.29 |
| Overall Length (Decimal Inch) | 5.1180 |
| Insert Diameter (mm) | 6.00 |
| Insert Diameter (Decimal Inch) | 0.2362 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 6.00 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Maximum RPM | 32000 |
| Minimum Cutting Diameter (Decimal Inch) | 0.2362 |
