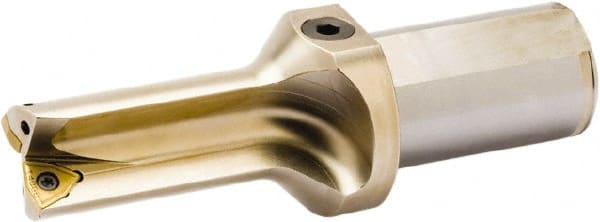

Seco - 82mm Max Drill Depth, 2xD, 41mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 60145067
Brand: Seco
Model #: 35709
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (mm) | 41.00 |
| Drill Diameter (Decimal Inch) | 1.6142 |
| Maximum Drill Depth (mm) | 82.00 |
| Maximum Drill Depth (Decimal Inch) | 3.2283 |
| Shank Type | Straight |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 47.00 |
| Overall Length/Projection (mm) | 185.00 |
| Overall Length/Projection (Decimal Inch) | 7.2835 |
| Insert Compatibility (Outside or Peripheral) | WCMX 080412.. |
| Insert Compatibility | WCMX 080412-86 |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Body Length (Decimal Inch) | 4.6063 |
| Body Length (mm) | 117.00 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Collar Diameter (mm) | 59.00 |
| Collar Diameter (Decimal Inch) | 2.3228 |
| Series | PerfoMAX |
