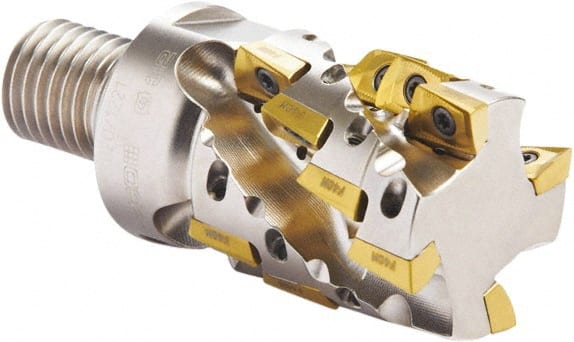

Seco - 20mm Cut Diam, 20mm Max Depth of Cut, 35mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 06 Inserts, M10 Modular Connection, 90° Lead Angle, Through Coolant, Series Nano Turbo
Item #: 60147279
Brand: Seco
Model #: 58457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Overall Length/Projection (mm) | 35.00 |
| Overall Length/Projection (Decimal Inch) | 1.3780 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 06 |
| Maximum RPM | 44800 |
