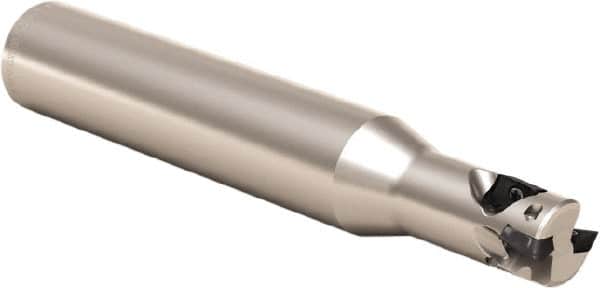

Seco - 20mm Cut Diam, 25mm Max Depth of Cut, 20mm Shank Diam, 120mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 06 Inserts, Cylindrical Shank, 90° Lead Angle, Series Nano Turbo
Item #: 60147618
Brand: Seco
Model #: 58465
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 06 |
| Shank Length (Decimal Inch) | 3.3465 |
| Shank Length (mm) | 85.00 |
| Maximum RPM | 44000 |
