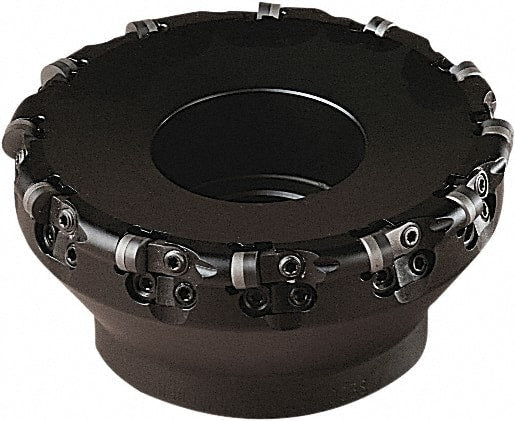

Seco - 72.5mm Cut Diam, 4.5mm Max Depth, 22mm Arbor Hole, 6 Inserts, RN.N 0903 Insert Style, Indexable Copy Face Mill - 10,200 Max RPM, 40mm High
Item #: 60147642
Brand: Seco
Model #: 23749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 72.50 |
| Cutting Diameter (Decimal Inch) | 2.8543 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RN.N 0903 |
| Through Coolant | No |
| Maximum RPM | 10200 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RNGN 090300E; RNGN 090300E25; RNGN 090300S; RNGN 090300S-01525; RNGN 090300S-01020; RNGN 090300S-01525-LF; RNGN 090300S-02020-LF; RNGN 090300S-LF; RNMN 090300E; RNMN 090300S; RNMN 090300S-02020 |
