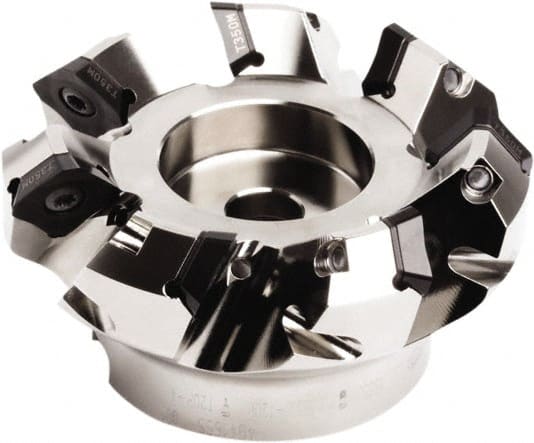

Seco - 116mm Cut Diam, 32mm Arbor Hole, 7.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SE.. 1505 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series QuattroMill
Item #: 60148681
Brand: Seco
Model #: 21870
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 116.00 |
| Cutting Diameter (Decimal Inch) | 4.5669 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SE.. 1505 |
| Series | QuattroMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.0315 |
| Hub Diameter (mm) | 77.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Maximum RPM | 6600 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 1505AFN-E10; SEEX 1505AFN-M12; SEEX 1505AFTN-M17; SEEX 1505ZZTN-M17; SEMX 1505AFTN-M18; SEMX 1505AFTN-MD20; SEMX 1505AFTN-ME15 |
