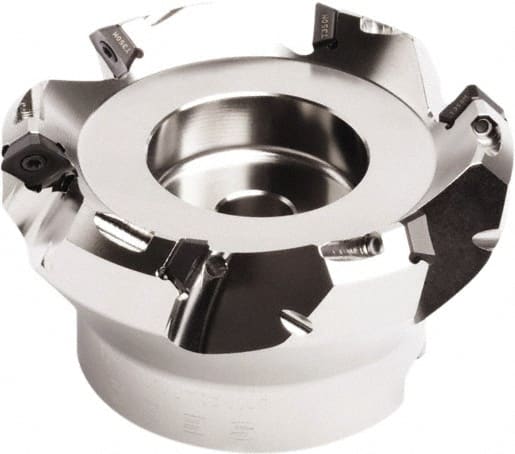

Seco - 110mm Cut Diam, 32mm Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SE.. 09T3 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series QuattroMill
Item #: 60148699
Brand: Seco
Model #: 04074
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 110.00 |
| Cutting Diameter (Decimal Inch) | 4.3307 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SE.. 09T3 |
| Series | QuattroMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.0315 |
| Hub Diameter (mm) | 77.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Maximum RPM | 11200 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 09T3AFN-E04; SEEX 09T3AFN-M05; SEEX 09T3AFTN-D09; SEEX 09T3AFTN-M08; SEEX 09T3AFTN-ME07; SEMX 09T3AFTN-M08; SEMX 09T3AFTN-ME06 |
