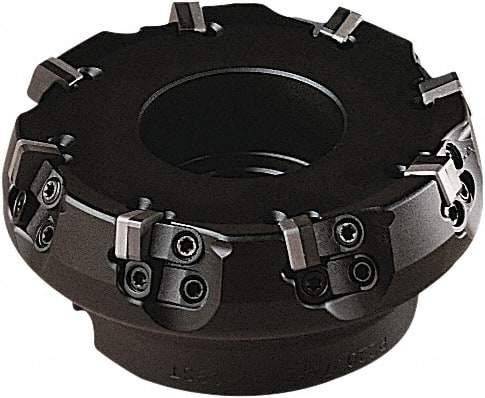

Seco - 82.3mm Cut Diam, 27mm Arbor Hole, 8mm Max Depth of Cut, 75° Indexable Chamfer & Angle Face Mill - 6 Inserts, SN.. 0903 Insert, Right Hand Cut, 6 Flutes, Series R220.74
Item #: 60149275
Brand: Seco
Model #: 23744
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 82.30 |
| Cutting Diameter (Decimal Inch) | 3.2402 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 75 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SN.. 0903 |
| Series | R220.74 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Hub Diameter (mm) | 62.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Maximum RPM | 9100 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNGN 090308E; SNGN 090308S; SNGN 090308S-01525; SNGN 090308S-01020; SNGN 090312S; SNGN 090312S-01020; SNGN 090316S; SNMN 090308E; SNMN 090308S; SNMN 090312E; SNMN 090312S; SNMN 090316S |
