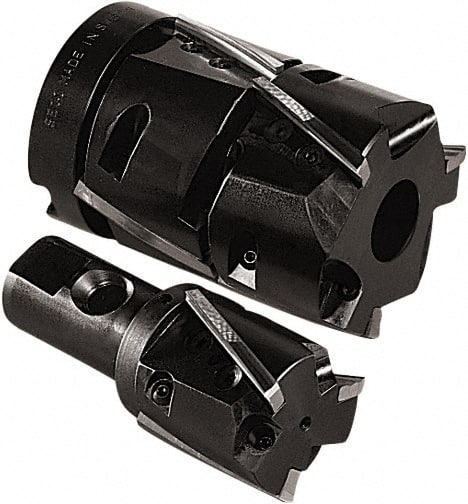

Seco - 32mm Cut Diam, 40mm Max Depth of Cut, 25mm Shank Diam, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 60150901
Brand: Seco
Model #: 36948
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (mm) | 32.00 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Head Length (mm) | 69.00 |
| Head Length (Decimal Inch) | 2.7165 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Maximum RPM | 8000 |
