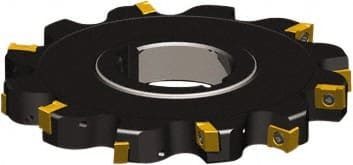

Seco - Arbor Hole Connection, 0.4724" Cutting Width, 3/4" Depth of Cut, 80mm Cutter Diam, 1-1/16" Hole Diam, 4 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 06.. Insert
Item #: 60151230
Brand: Seco
Model #: 18745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 4 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 06.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Maximum RPM | 10500 |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Radius | No |
| Cutter Body Width (mm) | 15.00 |
| Cutter Body Width (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility1 | LNKT 060504PPN-E05; LNKT 060504PPTN-M06; LNKT 060504PPTN4-M06; LNKT 060508PPN-E05; LNKT 060508PPTN-M06; LNKT 060508PPTN4-M06; LNKT 060516PPN-E05; LNKT 060516PPTN-M06; LNKT 060531PPN-E05; LNKT 060531PPTN-M06; LNKT 060540PPL-E05; LNKT 060540PPR-E05 |
