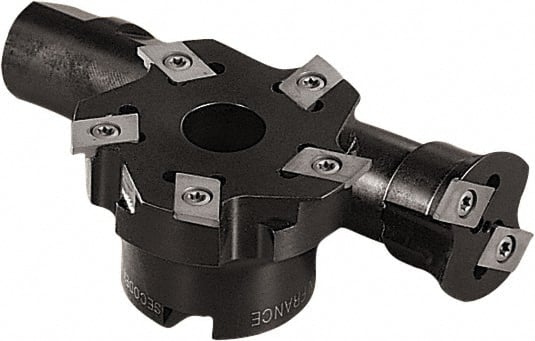

Seco - Arbor Hole Connection, 0.2028" Cutting Width, 0.2028" Depth of Cut, 63mm Cutter Diam, 0.8661" Hole Diam, Indexable Slotting Cutter - R335.15 Toolholder, R335.15-18 Insert, Right Hand Cutting Direction
Item #: 60151743
Brand: Seco
Model #: 78783
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 5.15 |
| Cutting Width (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (mm) | 5.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.2028 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Toolholder Style | R335.15 |
| Series | R335.15 |
| Insert Style | R335.15-18 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17300 |
| Minimum Cutting Width (Decimal Inch) | 0.1240 |
| Maximum Cutting Width (Decimal Inch) | 0.2028 |
| Maximum Cutting Width (mm) | 5.15 |
| Hub Diameter (mm) | 40.00 |
| Hub Diameter (Decimal Inch) | 1.5748 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Keyway Width (mm) | 10.40 |
| Radius | No |
| Rake | Neutral |
| Complete Insert Compatibility1 | R335.15-18315FG-M12; R335.15-18350FG-M12; R335.15-18400FG-M12; R335.15-18415FG-M12; R335.15-18500FG-M12; R335.15-18515FG-M12 |
