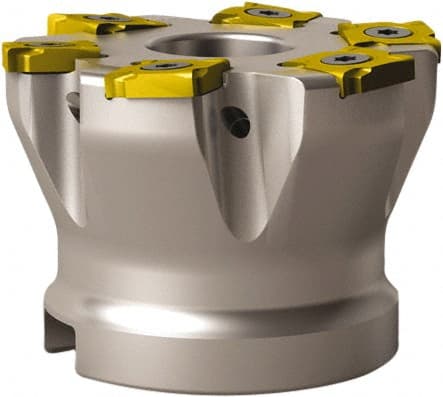

Seco - 5 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 3.1mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, SNHQ 1203 Insert Compatibility, Through Coolant
Item #: 60152360
Brand: Seco
Model #: 64312
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | SNHQ 1203 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.1220 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Cutting Rake Angle | -18 |
| Rake | Negative |
| Hub Diameter (mm) | 42.00 |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 12300 |
| Minimum Insert Radius (Decimal Inch) | 0.0787 |
| Complete Insert Compatibility | SNHQ 120302TR4-M07; SNHQ 120304TR4-M07; SNHQ 120308TR4-M07; SNHQ 120310TR4-M07; SNHQ 120312TR4-M07; SNHQ 120316TR4-M07; SNHQ 120320ER2-M07; SNHQ 120320TR4-M07; SNHQ 120324ER2-M07; SNHQ 120330ER2-M07 |
